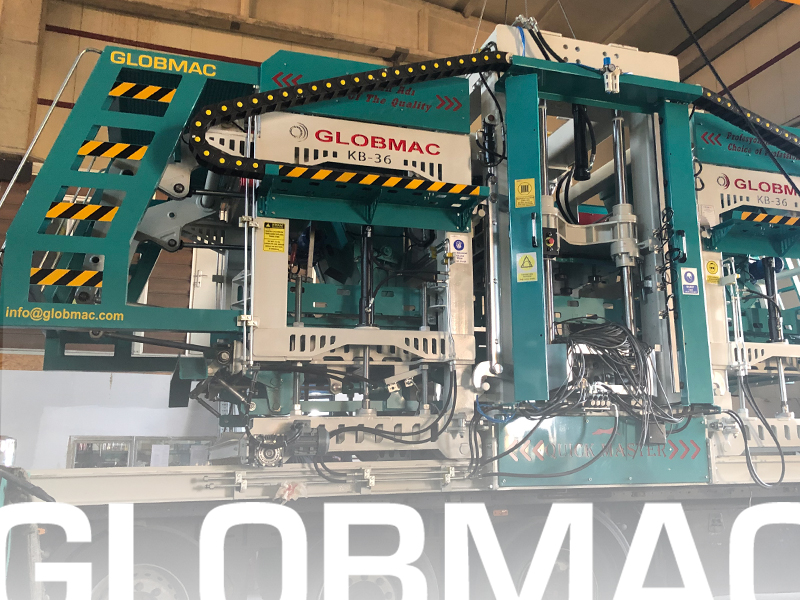

In modern paving stone production facilities, the machines in operation play a critical role in terms of production capacity, durability, and functional performance. The paving stone machines developed by GLOBMAC are designed to manufacture a wide range of concrete elements such as interlocking paving stones, curbstones, drainage channels, and grass pavers with a strong focus on efficiency and consistent quality. These machines are configured with different production capacities and operating structures to optimize the production process in line with the requirements of the production line.
The KB QUICK MASTER series paving stone machines offer production capacities ranging from 500 m² to 1,500 m² within an 8-hour working shift. This capacity range provides production facilities with flexibility in terms of output volume and product variety, creating a significant advantage for operations with high production demands.
The motion systems of GLOBMAC paving stone machines combine hydraulic, pneumatic, and electrical solutions. However, the design primarily emphasizes electrically driven systems to ensure ease of maintenance and reliable operation in dusty working environments. This system approach supports long service life and stable performance under continuous operating conditions.
The main machine frame is structured into three functional sections, providing clear operational separation. The first section manages the entry and positioning of empty pallets, the central section is where the mortar is formed through vibration and pressing, and the final section is dedicated to the discharge of finished products. This modular frame structure allows convenient access during both operation and maintenance while maintaining a controlled and systematic production flow along the line.
The internal vibration mechanism within the paving stone machines supports the rapid and homogeneous filling of mortar into the molds. In addition, this mechanism reduces the forward and backward movement of the mortar cars, minimizing mechanical wear and extending the service life of moving components. The shock absorber suspension system, positioned at the base of the pistons, provides effective protection against impact loads generated during repetitive motion, thereby increasing overall machine durability.
Paving stone machines are available in fully automatic and semi-automatic operating models. In fully automatic configurations, PLC-controlled systems enable continuous monitoring and control of all machine movements. This allows production performance, output quantity, and potential fault conditions to be systematically observed through the control interface.
Semi-automatic models offer an appropriate solution for smaller-scale production facilities. In these systems, products exiting the curing chambers are collected and packaged through manual labor rather than by an automatic collecting group. This approach provides flexibility for facilities with different investment levels and production infrastructures.
In paving stone production, pallet handling systems are essential for organizing product flow and ensuring the safe transfer of green products to the curing chambers. These systems are generally available in two main configurations:
Pallet Systems with Feet: Freshly produced products are transferred to the curing chambers with forklift support. After sufficient curing, the products are again moved by forklift to the pallet handling and collection area.
Footless Pallet Systems: Advanced transfer solutions such as the finger car system and the basket system enable pallets to be automatically transferred between the curing chambers and the machine line. This level of automation reduces labor requirements and supports a more controlled and continuous production flow.
The finger car system uses a rail-guided carrier to transport pallets between the curing chambers and the collecting group. The basket system, on the other hand, stacks wooden pallets on racks using elevator units, eliminating direct forklift contact and helping to extend pallet service life.
These machines can produce interlocking paving stones, curbstones, drainage channels, grass pavers, and similar concrete building elements.
Fully automatic machines allow production data to be monitored and potential faults to be observed through PLC-based control systems, ensuring a more controlled and traceable production process.
Footless pallet systems enable the automatic transfer of pallets between the curing chambers and the machine line, minimizing manual handling and improving process efficiency.
A modular main frame structure simplifies maintenance and component replacement, contributing to long-term operational reliability and stable machine performance.
GLOBMAC aims to strengthen production efficiency and quality standards through its range of paving stone machines designed to meet industrial production requirements. With machines offered in different capacity levels and operating models, GLOBMAC delivers solutions tailored to the needs of each facility. To optimize production performance, maintain a controlled workflow, and achieve sustainable operational success, you are invited to contact GLOBMAC’s professional engineering team.
You can request support from our expert staff and receive aprice quote for the machines or equipment you need.
